820H

The 820H is one of the most compact front loaders in the LiuGong lineup. The width across the tires is 1940 mm, and the length across the bucket is 6400 mm.

More details

Characteristics

Air intake system

—

Atmosphere

Maximum dumping height, mm

—

3050

Dumping distance at maximum height, mm

—

920

Standard bucket volume, m³

—

1,2

Model and manufacturer

—

Yuchai YC4A90-T22

Gross power, kW/hp

—

66 / 89 at 2300 rpm

All characteristics

The LiuGong 820H compact front loader is the ideal solution for small construction and mining sites, as well as municipal and agricultural applications. Its compact size and tight turning radius make it ideal for working in tight spaces.

Turning radius (outside tire) – 4810 mm

Ground-level machine maintenance

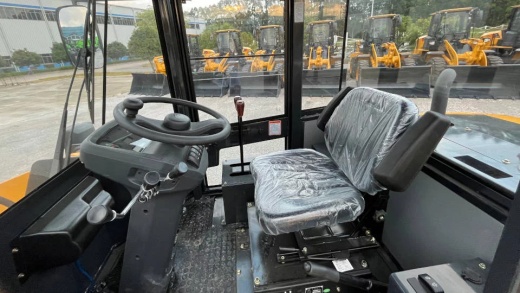

Excellent visibility from the cab

Gross engine power – 66 kW / 89 hp

Attachment options include buckets, forks, grapples, and snow plows.

Characteristics

Air intake system	Atmosphere
Maximum dumping height, mm	3050
Dumping distance at maximum height, mm	920
Standard bucket volume, m³	1,2
Model and manufacturer	Yuchai YC4A90-T22
Gross power, kW/hp	66 / 89 at 2300 rpm
Number of cylinders	4
Bucket breakout force, kN	50
Tire size type	16/70–20 14PR
Size (H×W×D), mm	6400 x 1940 x 2900
Emission standard	Tier 2 / Stage II
Max. forward speed, km/h	25
Max. reverse speed, km/h	25

Documents

820H_brochure_rus_2024

924,5 KB

You can purchase equipment on an installment plan or lease. You can also submit a request—our manager will contact you to clarify the details.
