LiuGong 840H

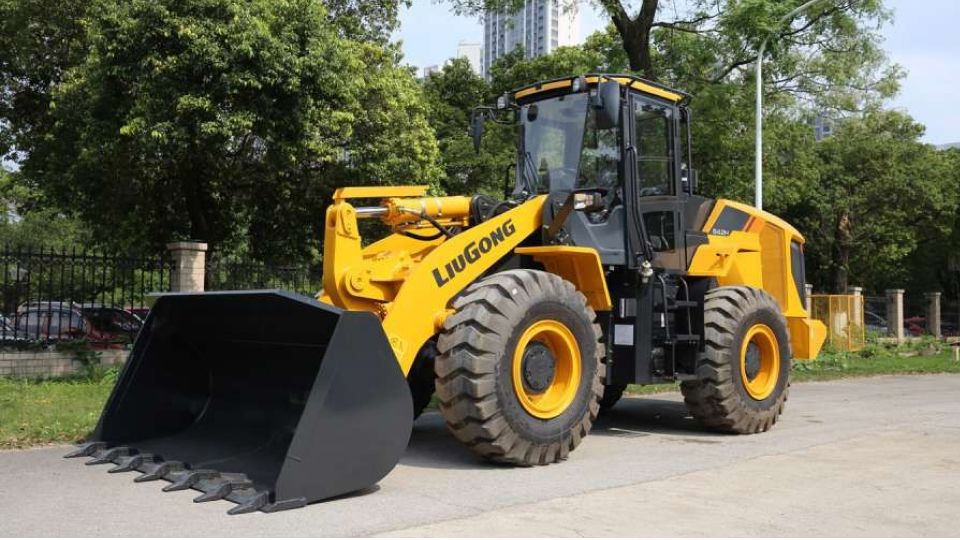

LiuGong 840H is a front loader with a standard bucket capacity of 2 m³ and a lifting capacity of 4 tons.

More details

Characteristics

Air intake system

—

Turbocharged

Maximum dumping height, mm

—

2,870

Dumping distance at maximum height, mm

—

1,095

Standard bucket volume, m³

—

Rated power, kW / hp

—

92 / 123 at 2200 rpm

Turning radius, bucket-dump body, mm

—

5,740

All characteristics

The LiuGong 840H is a front-end loader with a standard 2m³ bucket capacity and a 4-ton lifting capacity. It is available with either a Weichai or Cummins engine. The hydraulic system utilizes two pumps. Steering is prioritized, reducing energy loss. A 309° panoramic view ensures efficient and safe operation. A sealed, internally pressurized cabin keeps the cabin clean and quiet. A single-layer radiator and large fan ensure high efficiency and ease of maintenance.

Characteristics

Air intake system	Turbocharged
Maximum dumping height, mm	2,870
Dumping distance at maximum height, mm	1,095
Standard bucket volume, m³	2
Rated power, kW / hp	92 / 123 at 2200 rpm
Turning radius, bucket-dump body, mm	5,740
Wheelbase, mm	2,870
Operating weight, kg	10,925
Model and manufacturer	Yuchai YC6J125Z-T22
Number of cylinders	6
Bucket breakout force, kN	93
Tire size type	17.5-25 PR12 L-3 TT
Size (H×W×D), mm	718522953340
Emission standard	Tier 2 / Stage II
Max. forward speed, km/h	38
Max. reverse speed, km/h	17

You can purchase equipment on an installment plan or lease. You can also submit a request—our manager will contact you to clarify the details.
