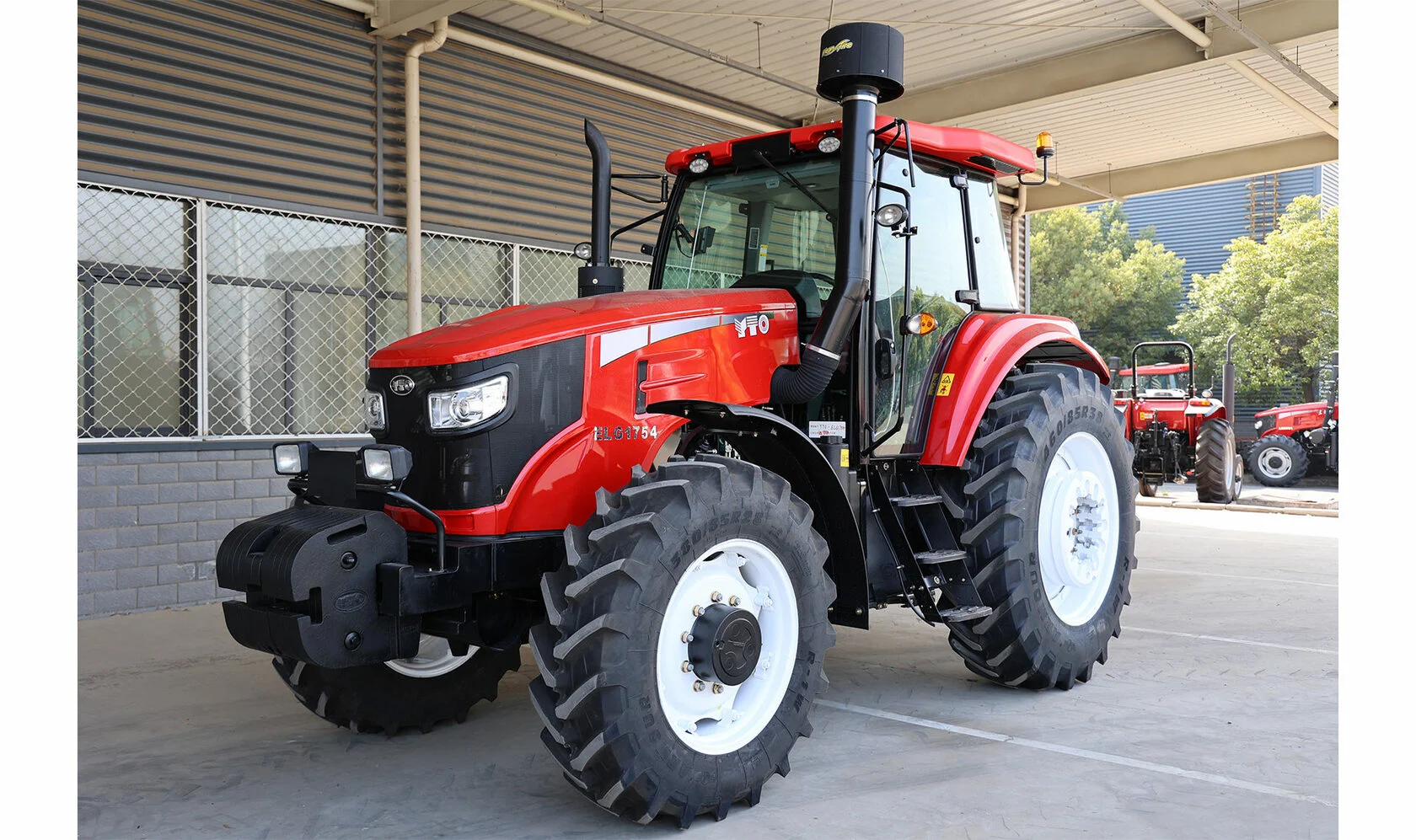

YTO-ELG1754
Characteristics
Engine model
—
SC7H190.4G3
Wheelbase, mm
—
2790
Traction force, kN
—
37
Maximum torque, N·m
—
721 Nm at 1400 rpm
Nominal power, kW / hp
—
128,6/175
Fuel tank, l
—
275
YTO-ELG1754
#PROP_TITLE#
—
#PROP_VALUE#
Characteristics
|
Engine model
|
SC7H190.4G3 |
|
Wheelbase, mm
|
2790 |
|
Traction force, kN
|
37 |
|
Maximum torque, N·m
|
721 Nm at 1400 rpm |
|
Nominal power, kW / hp
|
128,6/175 |
|
Fuel tank, l
|
275 |
|
Ground clearance, mm
|
490 |
|
Drive
|
Full (engageable) drive |
|
Engine
|
6-cylinder, inline, liquid-cooled, turbocharged engine |
|
Fuel
|
Diesel |
|
Engine displacement (cm³)
|
6440 |
|
Piston cylinder diameter × stroke (mm)
|
105*124 |
|
Nominal crankshaft speed (rpm)
|
2200 |
|
Air filter
|
Dry type |
|
Battery
|
12V, 120Ah batteries (2 pcs) |
|
Number of gears (forward/reverse)
|
18/6 |
|
Front counterweights (quantity (pcs.) × mass (kg))
|
12*45 |
|
Rear counterweights (quantity (pcs.) × mass (kg))
|
4*75 |
|
Front tires
|
14,9-28 |
|
Rear tires
|
18,4-38 |
|
Clutch diameter (inches)
|
15 |
|
Clutch type
|
Dry type |
|
Maximum lifting capacity (load point 610 mm behind suspension axle) kN
|
30 |
|
PTO rotation speed (rpm)
|
540/1000 |
|
Operating weight, kg
|
6580 |
|
Size (H×W×D), mm
|
5430*2770*3310 |
|
Max. forward speed, km/h
|
2,81-38,95 |
|
Max. reverse speed, km/h
|
4,84-13,53 |
You can purchase equipment on an installment plan or lease. You can also submit a request—our manager will contact you to clarify the details.
