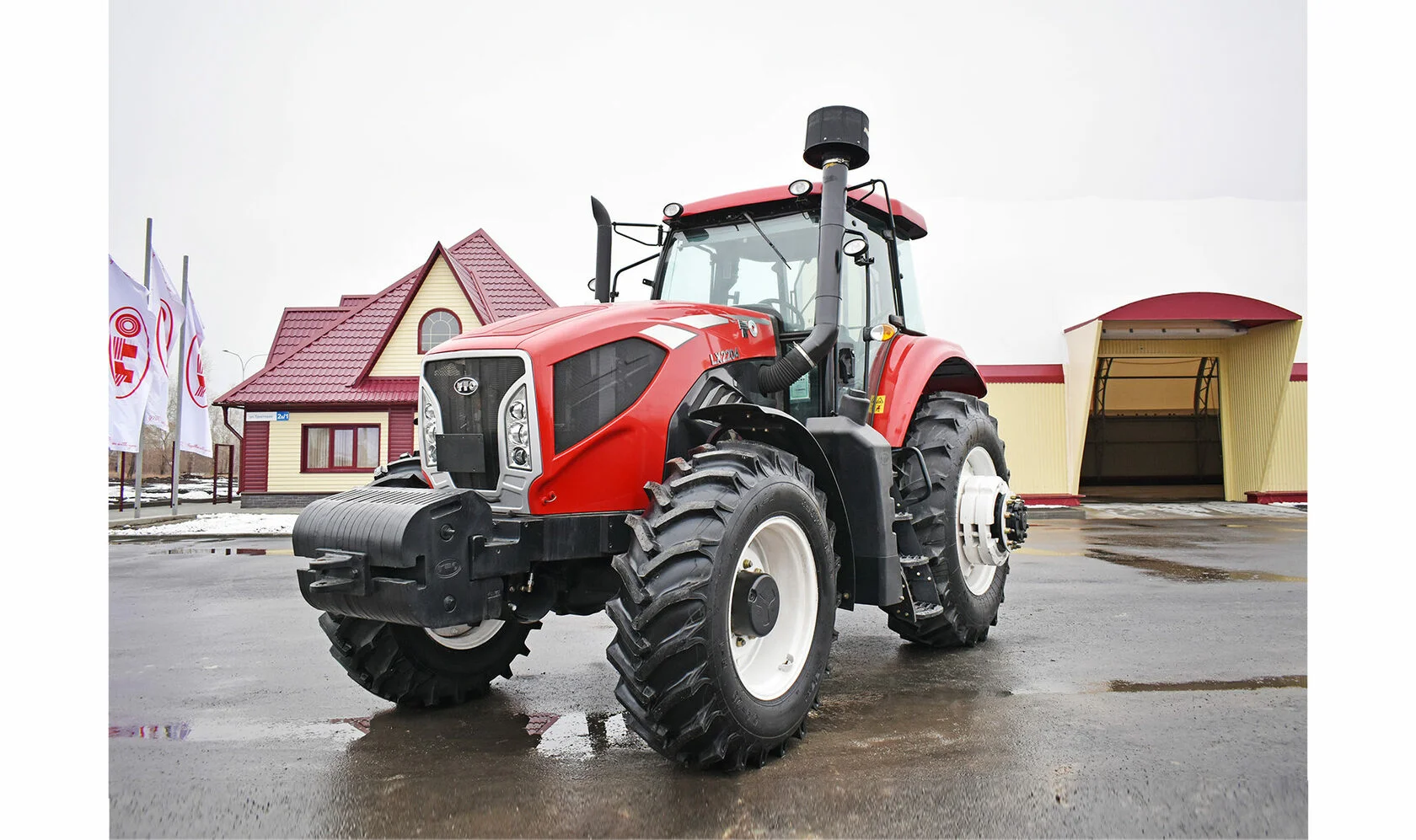

YTO-LX2204
Хит
Characteristics
Engine model
—
SC9D250G2
Wheelbase, mm
—
2928
Traction force, kN
—
58
Maximum torque, N·m
—
1060 Nm at 1400 rpm
Nominal power, kW / hp
—
162/220
Fuel tank, l
—
400
YTO-LX2204
#PROP_TITLE#
—
#PROP_VALUE#
Characteristics
|
Engine model
|
SC9D250G2 |
|
Wheelbase, mm
|
2928 |
|
Traction force, kN
|
58 |
|
Maximum torque, N·m
|
1060 Nm at 1400 rpm |
|
Nominal power, kW / hp
|
162/220 |
|
Fuel tank, l
|
400 |
|
Ground clearance, mm
|
420 8 |
|
Drive
|
Full (engageable) drive |
|
Fuel
|
Diesel |
|
Engine displacement (cm³)
|
8820 |
|
Piston cylinder diameter × stroke (mm)
|
114*144 |
|
Nominal crankshaft speed (rpm)
|
2200 |
|
Air filter
|
Dry type |
|
Battery
|
12V, 120Ah (2 pieces) |
|
Number of gears (forward/reverse)
|
12/4 |
|
Front counterweights (quantity (pcs.) × mass (kg))
|
18*45 |
|
Rear counterweights (quantity (pcs.) × mass (kg))
|
4*90 |
|
Front tires
|
16.9-28 3.981 |
|
Rear tires
|
20.8-38 |
|
Clutch diameter (inches)
|
16 |
|
Clutch type
|
Dry type |
|
Maximum lifting capacity (load point 610 mm behind suspension axle) kN
|
47 |
|
PTO rotation speed (rpm)
|
540/1000 |
|
Size (H×W×D), mm
|
5580*3550*3490 |
Video
You can purchase equipment on an installment plan or lease. You can also submit a request—our manager will contact you to clarify the details.
