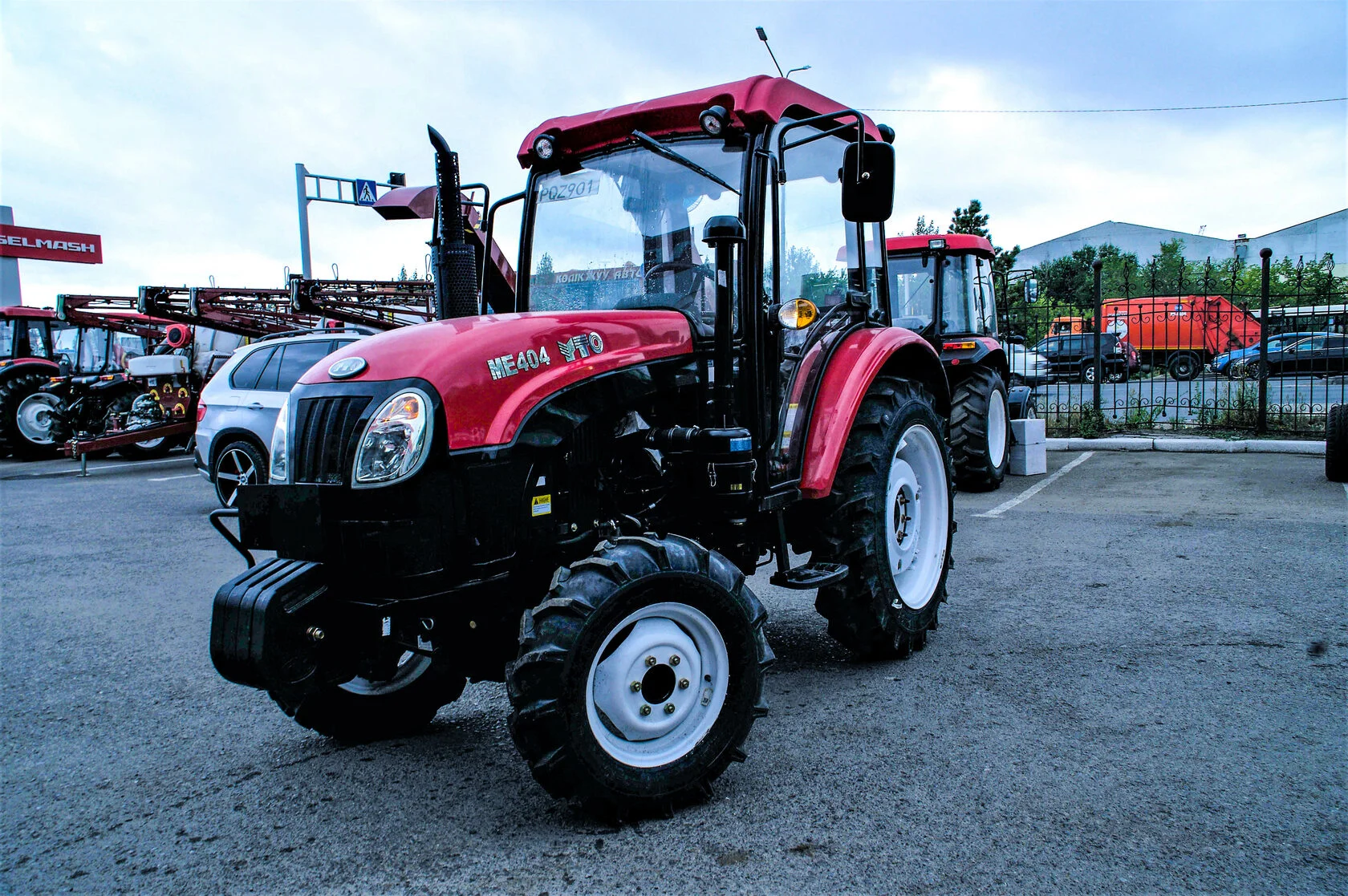

YTO-ME404
Characteristics
Engine model
—
C490BT
Wheelbase, mm
—
1830
Maximum torque, N·m
—
146.5 Nm at 1500 rpm
Traction force, kN
—
16
Nominal power, kW / hp
—
29,4/40
Fuel tank, l
—
33
YTO-ME404
#PROP_TITLE#
—
#PROP_VALUE#
Characteristics
|
Engine model
|
C490BT |
|
Wheelbase, mm
|
1830 |
|
Maximum torque, N·m
|
146.5 Nm at 1500 rpm |
|
Traction force, kN
|
16 |
|
Nominal power, kW / hp
|
29,4/40 |
|
Fuel tank, l
|
33 |
|
Ground clearance, mm
|
280 |
|
Drive
|
Full (engageable) drive |
|
Engine
|
4-cylinder, inline, vertical, liquid-cooled, four-stroke, naturally aspirated |
|
Fuel
|
diesel |
|
Engine displacement (cm³)
|
2670 |
|
Piston cylinder diameter × stroke (mm)
|
90*105 |
|
Nominal crankshaft speed (rpm)
|
2300 |
|
Air filter
|
Wet type |
|
Battery
|
12V, 120Ah, CCA (850A) battery |
|
Number of gears (forward/reverse)
|
8+4 |
|
Front counterweights (quantity (pcs.) × mass (kg))
|
4*20 |
|
Rear counterweights (quantity (pcs.) × mass (kg))
|
2*50 |
|
Front tires
|
8.3-20 |
|
Rear tires
|
12.4-28 |
|
Clutch diameter (inches)
|
10 |
|
Clutch type
|
Dry type, double-acting |
|
Maximum lifting capacity (load point 610 mm behind suspension axle) kN
|
10,9 |
|
PTO rotation speed (rpm)
|
540/1000 |
|
Operating weight, kg
|
1980 |
|
Size (H×W×D), mm
|
3660*1485*2310 |
|
Max. forward speed, km/h
|
2.46-32,22 |
|
Max. reverse speed, km/h
|
3.65-11,13 |
You can purchase equipment on an installment plan or lease. You can also submit a request—our manager will contact you to clarify the details.
