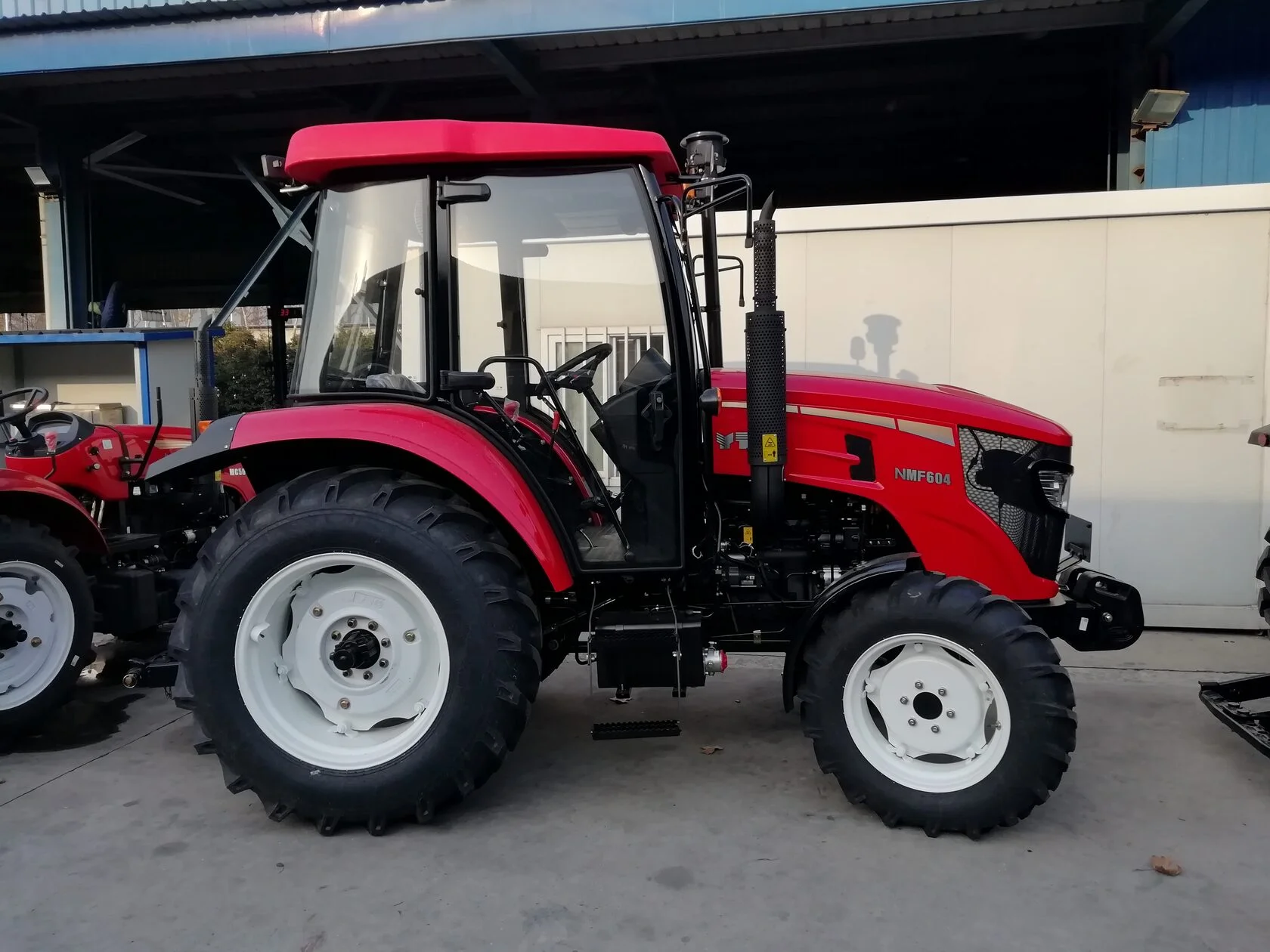

YTO-NMF604
Characteristics
Engine model
—
YT4A2
Length × width by tires × height, mm
—
4180*1760*2590
Wheelbase, mm
—
2155
Maximum torque, N·m
—
230 Nm at 1500 rpm
Traction force, kN
—
20
Nominal power, kW / hp
—
44,1/60
YTO-NMF604
#PROP_TITLE#
—
#PROP_VALUE#
Characteristics
|
Engine model
|
YT4A2 |
|
Length × width by tires × height, mm
|
4180*1760*2590 |
|
Wheelbase, mm
|
2155 |
|
Maximum torque, N·m
|
230 Nm at 1500 rpm |
|
Traction force, kN
|
20 |
|
Nominal power, kW / hp
|
44,1/60 |
|
Fuel tank, l
|
68 |
|
Ground clearance, mm
|
350 8 |
|
Drive
|
Full (engageable) drive |
|
Engine
|
4-cylinder, inline, vertical, liquid-cooled, four-stroke, naturally aspirated. |
|
Fuel
|
Diesel |
|
Engine displacement (cm³)
|
4150 |
|
Piston cylinder diameter × stroke (mm)
|
105*120 |
|
Nominal crankshaft speed (rpm)
|
2200 |
|
Air filter
|
Wet type |
|
Battery
|
12V, 120Ah, CCA 850A (BCI) |
|
Number of gears (forward/reverse)
|
8+8 |
|
Front counterweights (quantity (pcs.) × mass (kg))
|
4*20 |
|
Rear counterweights (quantity (pcs.) × mass (kg))
|
2*50 |
|
Front tires
|
9,5-20 |
|
Rear tires
|
14,9-28 |
|
Clutch diameter (inches)
|
11 |
|
Clutch type
|
Dry type |
|
Maximum lifting capacity (load point 610 mm behind suspension axle) kN
|
12,8 |
|
PTO rotation speed (rpm)
|
540/1000 |
