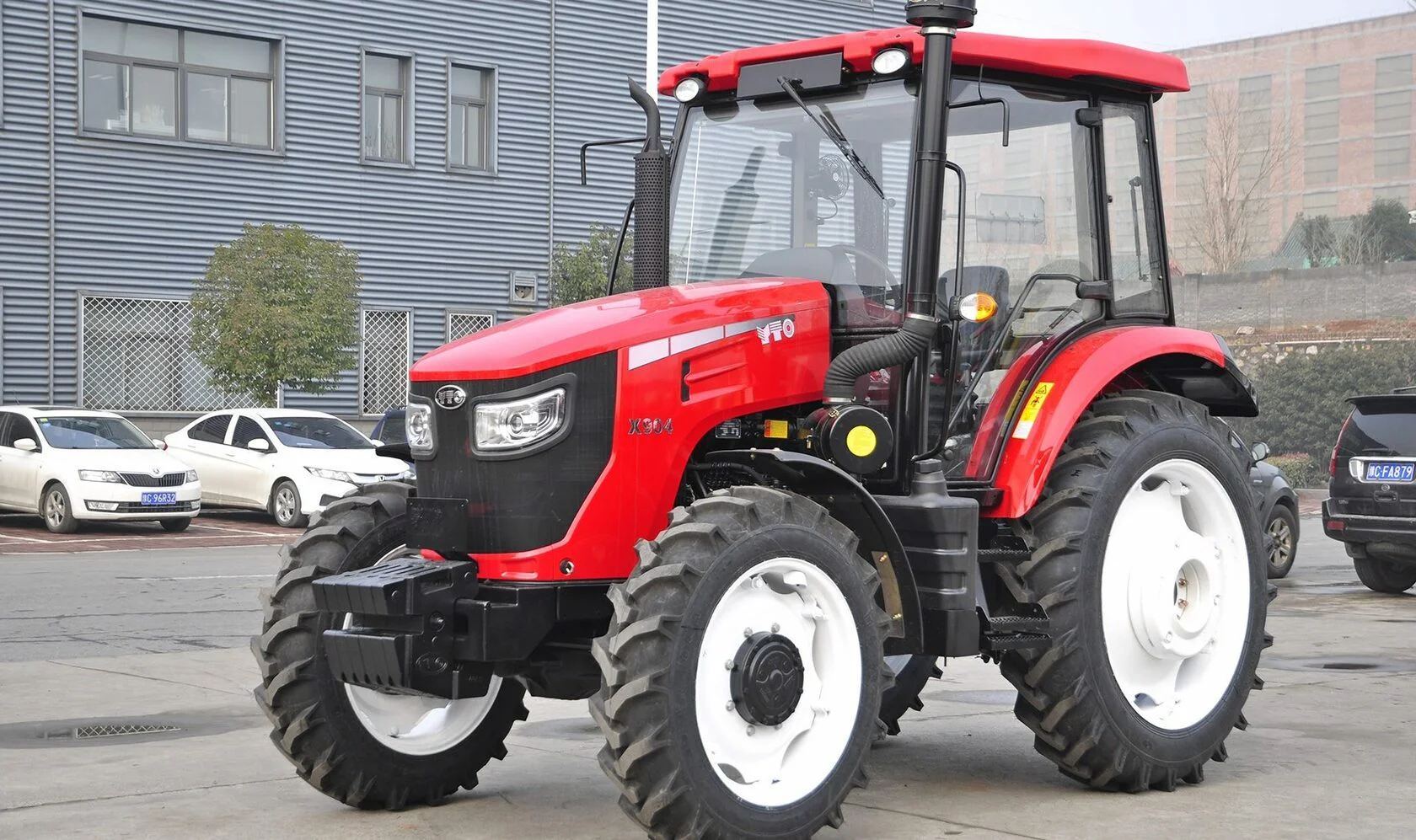

YTO-X904
Хит
Characteristics
Engine model
—
LR4М5-23
Length × width by tires × height, mm
—
4550*2550*2950
Wheelbase, mm
—
2314
Traction force, kN
—
28,8
Maximum torque, N·m
—
330 Nm at 1545 rpm
Nominal power, kW / hp
—
66,2/90
YTO-X904
#PROP_TITLE#
—
#PROP_VALUE#
Characteristics
|
Engine model
|
LR4М5-23 |
|
Length × width by tires × height, mm
|
4550*2550*2950 |
|
Wheelbase, mm
|
2314 |
|
Traction force, kN
|
28,8 |
|
Maximum torque, N·m
|
330 Nm at 1545 rpm |
|
Nominal power, kW / hp
|
66,2/90 |
|
Fuel tank, l
|
147 |
|
Ground clearance, mm
|
428 8 |
|
Drive
|
Full (engageable) drive |
|
Engine
|
4-cylinder, inline, vertical, liquid-cooled, four-stroke, naturally aspirated. |
|
Fuel
|
diesel |
|
Engine displacement (cm³)
|
5130 |
|
Piston cylinder diameter × stroke (mm)
|
110*135 |
|
Nominal crankshaft speed (rpm)
|
2200 |
|
Air filter
|
Dry type |
|
Battery
|
12V, 120Ah, CCA 850A (BCI) |
|
Number of gears (forward/reverse)
|
12+12 |
|
Front counterweights (quantity (pcs.) × mass (kg))
|
6*50 |
|
Rear counterweights (quantity (pcs.) × mass (kg))
|
4*50 |
|
Front tires
|
13,6-24 3.24-9.91 |
|
Rear tires
|
16,9-34 |
|
Clutch diameter (inches)
|
12 |
|
Clutch type
|
Dry type |
|
Maximum lifting capacity (load point 610 mm behind suspension axle) kN
|
16 |
|
PTO rotation speed (rpm)
|
540/1000 |
